GeeX 365 POD – Technical Product Description

The GeeX 365 POD is a modular, multi-terrain micro-shelter system engineered for year-round mobility across snow, gravel, trails, asphalt, and water. Built for expedition use, rental operations, and consumer outdoor recreation, the POD integrates a universal base platform with interchangeable attachments and configurable shelter modules.

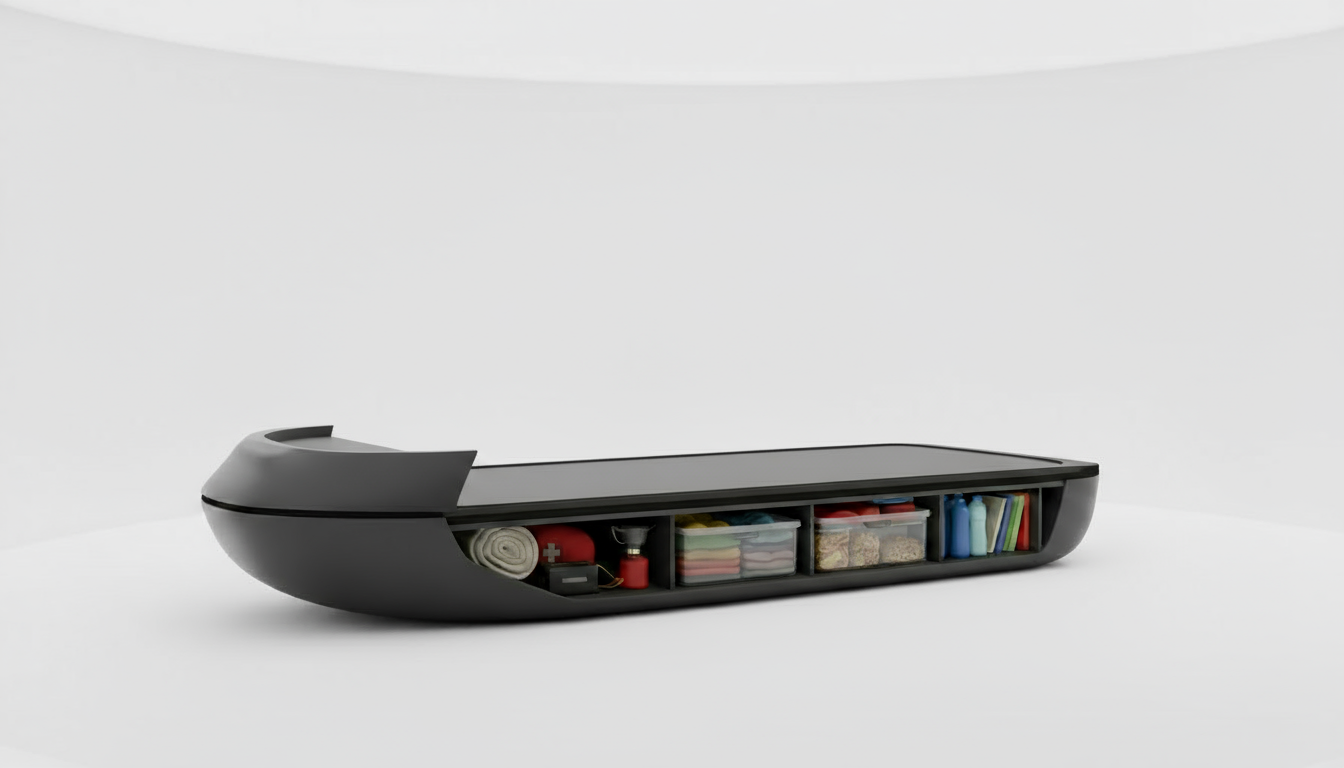

1. Base Platform

Length: 210 cm (measured across upper rim)
Width: 34–40 cm depending on model variant (Adventure / Expedition / MultiBase)
Empty weight: from 7.0 kg (base-only)

Construction

• Material: High-strength fiberglass composite for optimal stiffness-to-weight performance

• Reinforced with HD core laminates for impact and torsion resistance

• Integrated replaceable structural elements made from recycled ocean plastics, allowing sustainable manufacturing and repairability

• Full-length ribbed undercarriage shaped as dual sled-tracks, providing directional stability on snow and ice

Load Rating

• Engineered for 130+ kg distributed load

• Internal stress zones reinforced for dynamic towing (ski, running, cycling)

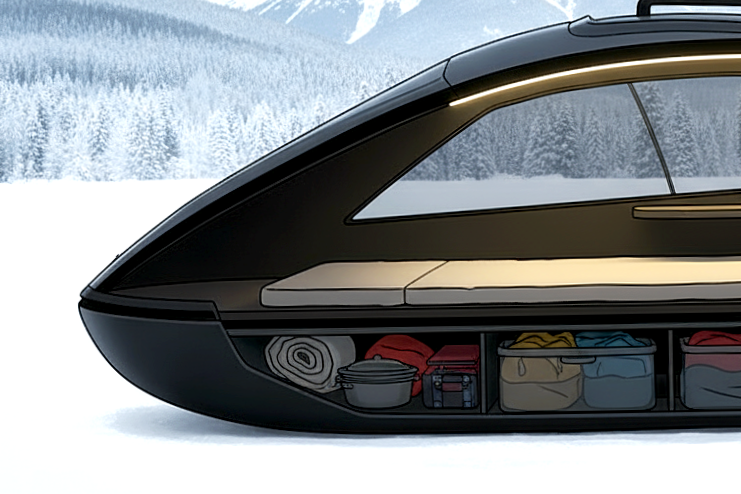

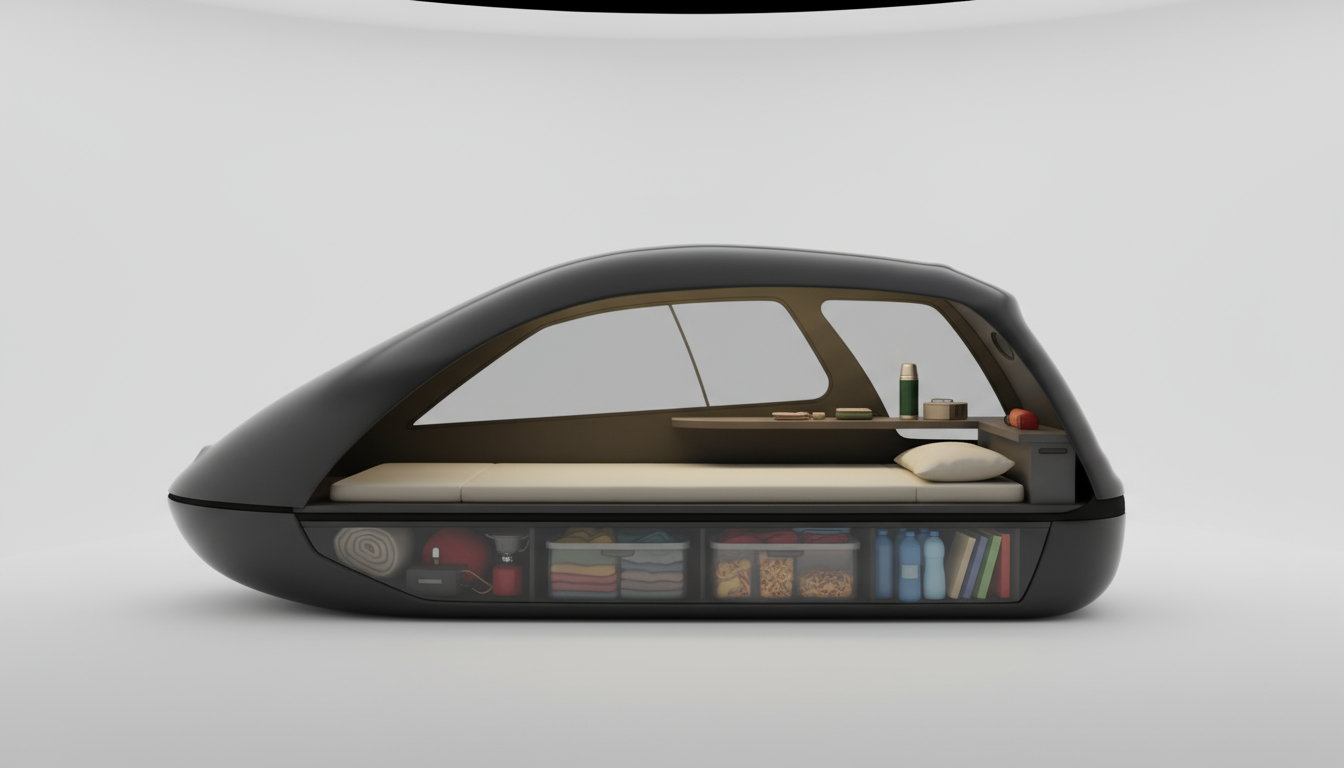

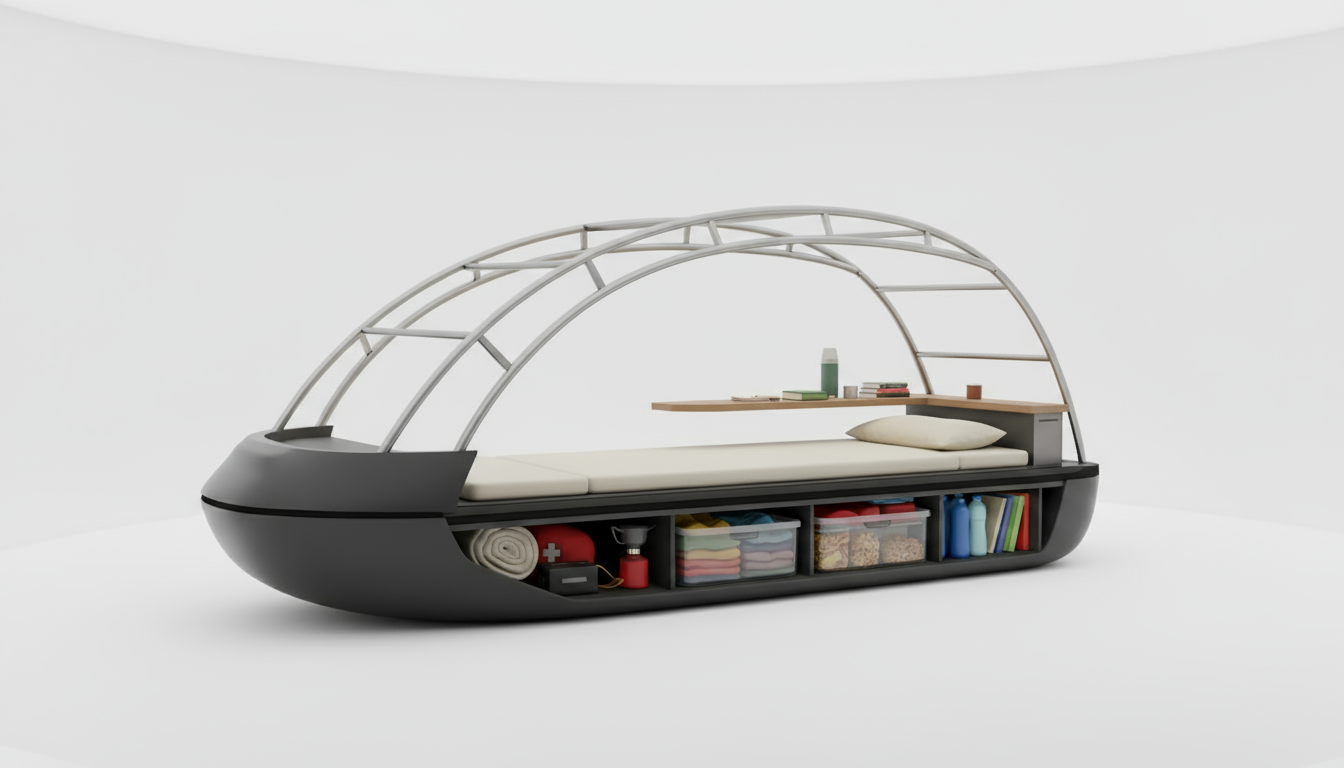

Compartment System

• Eight independent storage compartments, accessible from inside or top-lid modules

• Modular interior boxes (recycled-HDPE) for gear segregation

• Low-friction surfaces for dry, quick access

• Drainage channels included for winter operation

2. Undercarriage & Mobility Systems

Universal Sled-Track Geometry

• Symmetric dual-track design for predictable glide on snow

• Low-drag curvature optimized for long-distance towing

• Replaceable HDPE skid rails (optional hard-snow upgrade)

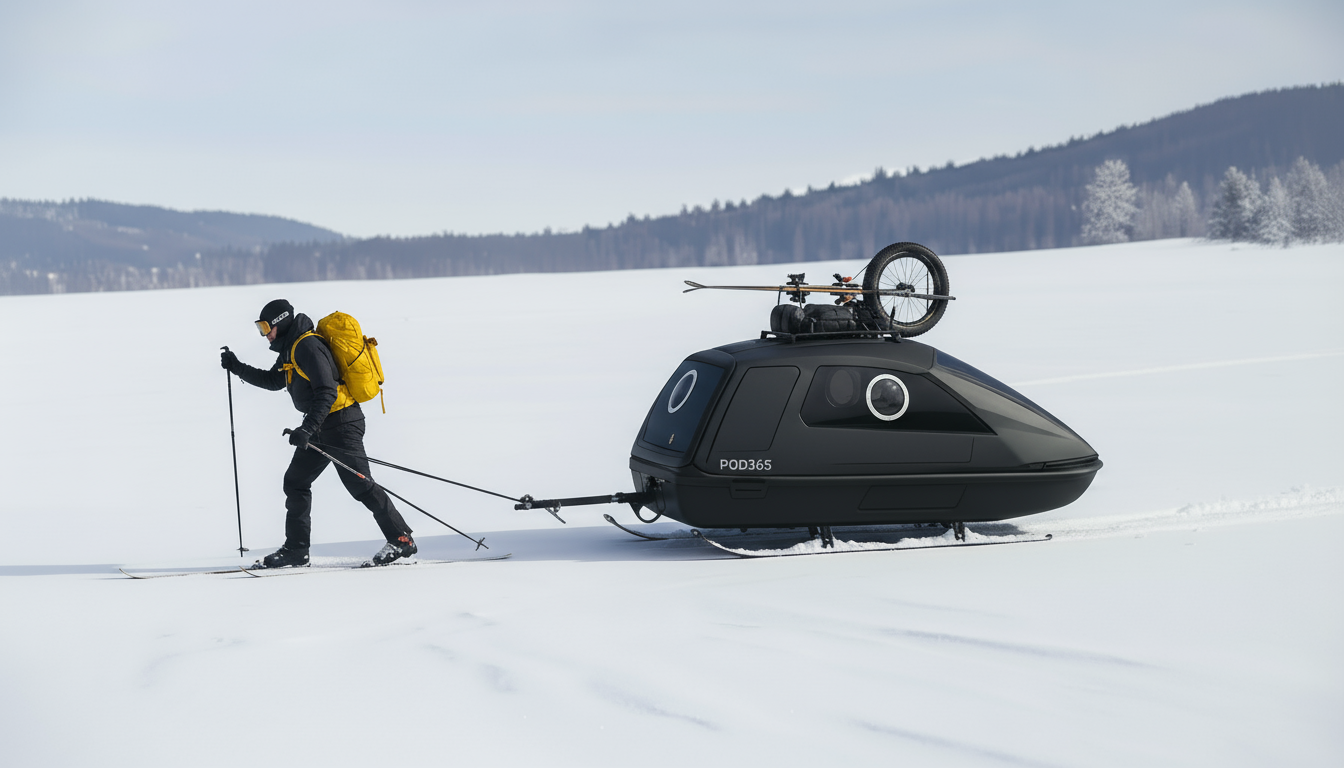

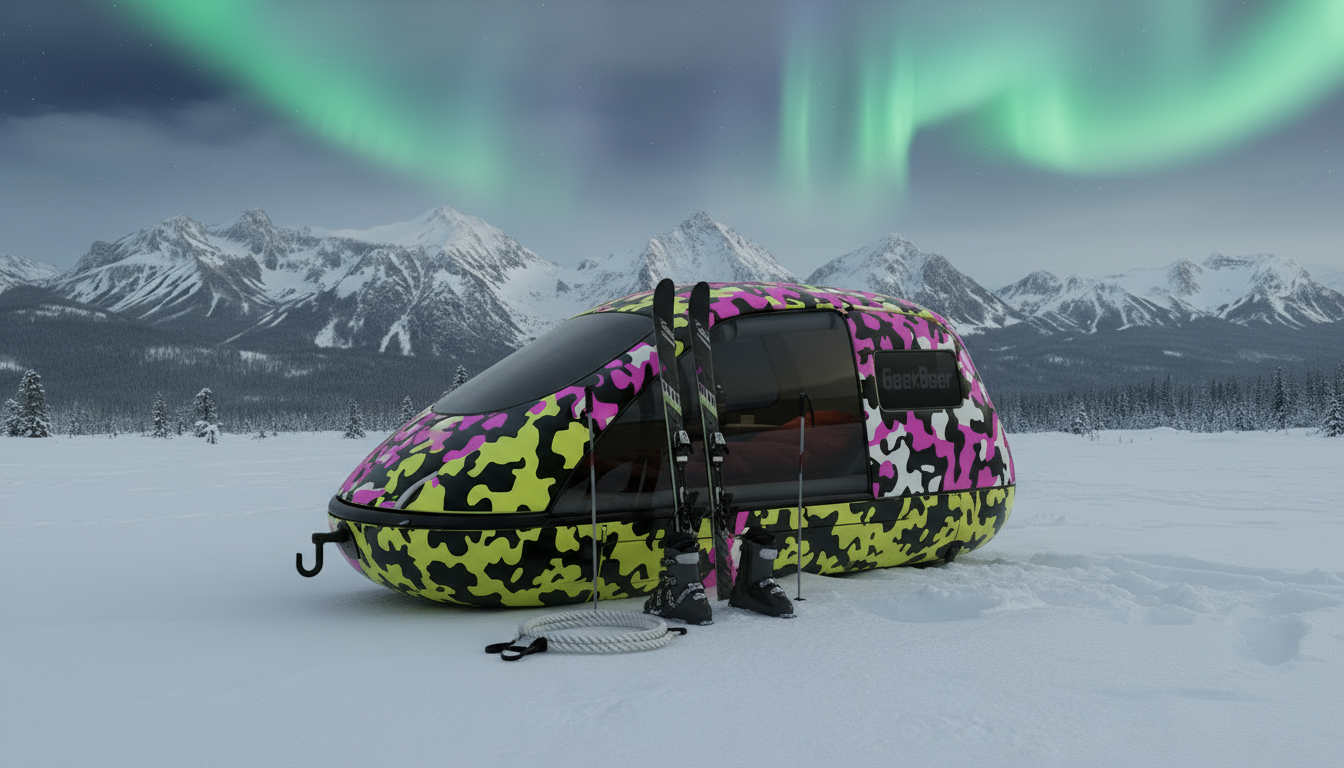

Ski-Mount Locking System

• Patent-pending LockMount rail system for attaching high-profile skis

• Rapid install: tool-free, pinch-lock clamps

• Enables deep-snow flotation without altering the base structure

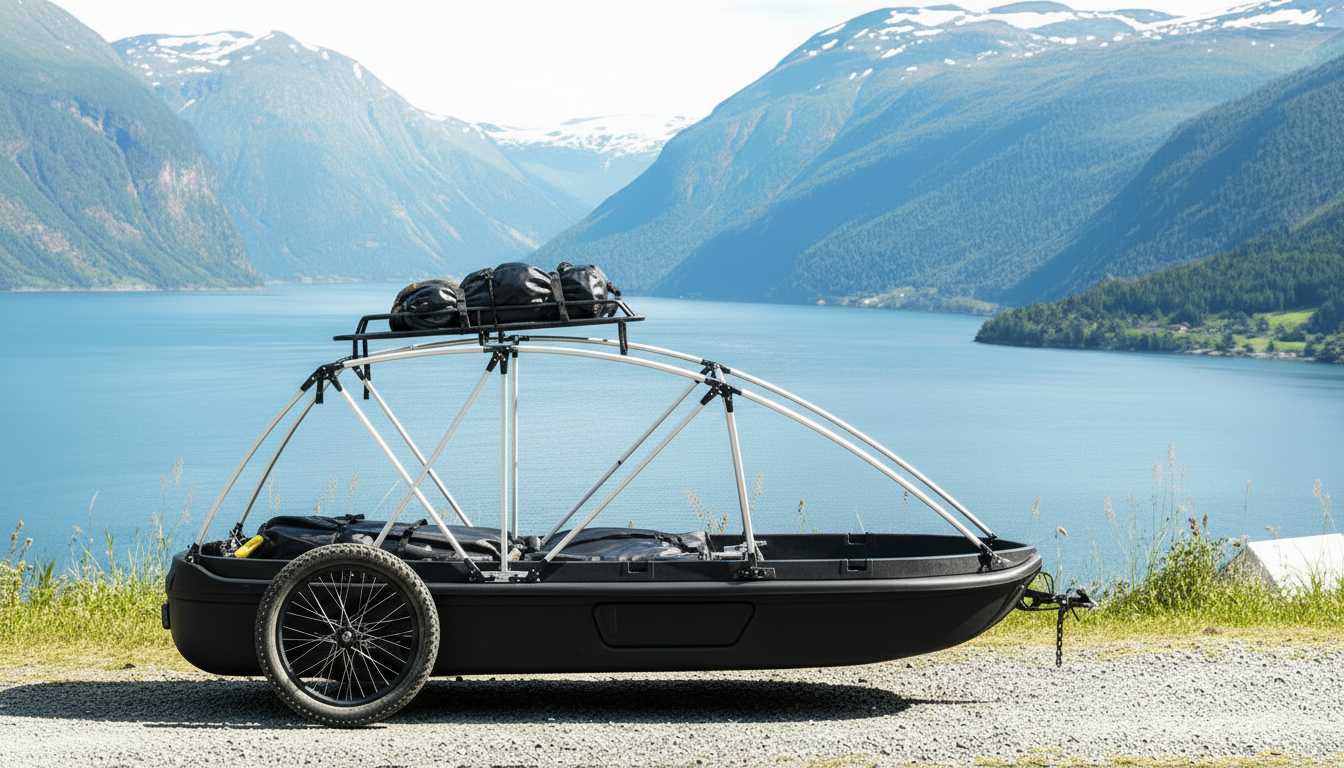

Wheel-Mount System (Trail & Road Use)

• Quick-attach wheel arms with vibration-damping bushings

• Compatible with 29”, 27.5”, 26” wheel sets depending on configuration

• Hub mounts with sealed bearings

• Adjustable track width for stability on mixed terrain

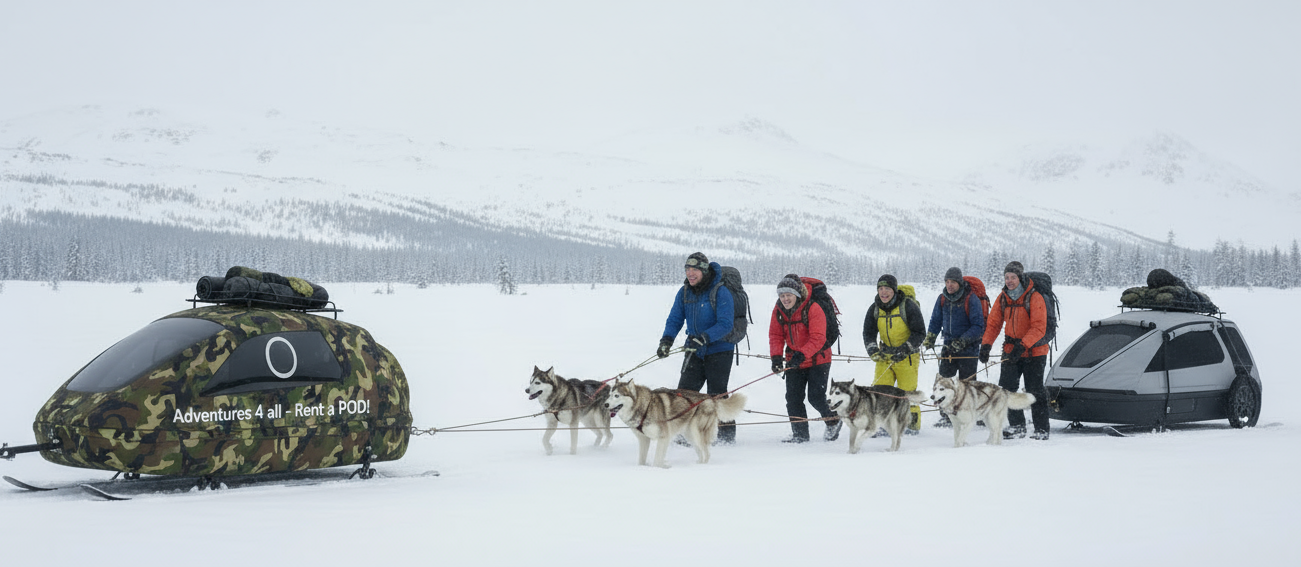

Tow Interfaces

• Universal hitch system for:

  • Ski harness

  • Bike tow-bar

  • Hand-pull rig

• Flexible joint allowing roll, pitch, and yaw articulation

3. Shelter Modules

The GeeX 365 POD supports three shelter variants:

A. Flexible Canvas/Tent Module

• Developed with Scandinavian tent fabric specialists

• Multi-layer poly-fiber with waterproof and wind-resistant coating

• Flexible, durable, field-repairable

• Constructed with shock-corded tent poles

• High snow-load tolerance

• Breathable ventilation system

• Compact folding for rapid deploy/stow

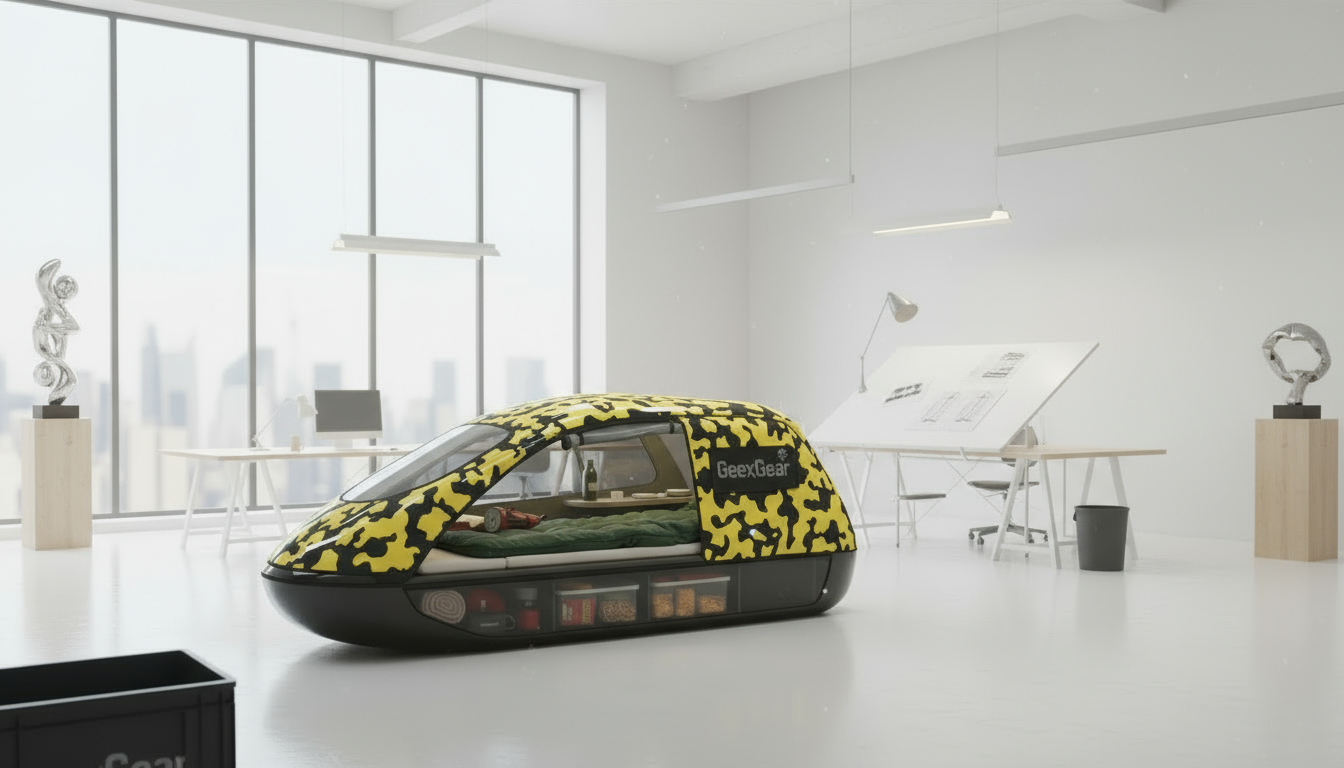

B. Hard-Top Module – 2-Section (HD-PE)

• Rugged PE-HD construction

• Hinged dual-section for quick access

• Optimized for winter use, rental fleets, and guide services

• Integrated anchor points for cargo nets or insulation inserts

C. Hard-Top Module – 3-Section (HD-PE)

• Three independent rigid panels for maximum customization

• Greater internal access points

• Suitable for professional applications (rescue, expedition, military)

Hybrid MultiBase Configuration

• POD can operate with canvas top + hard-shell front or hard-shell rear + canvas mid-section, depending on mission profile.

4. Structural Features

Frame Geometry

• Low center of gravity for stability under load

• Slightly tapered bow for hydrodynamic lift in water mode

• Rear bevel reduces drag when pulled uphill

Insulation & Thermals

• Multi-layer insulation mats (optional)

• Thermal ridge channels to prevent condensation buildup

Mounting Points

• 14 integrated anchor/attachment points for:

  • Photo gear

  • Solar panels

  • Dry bags

  • Rescue equipment

  • Bikepacking integration

5. Water Mode (Optional Kit)

• Converts POD to a towable micro-kayak

• Stabilizer wings for lateral balance

• Water-sealed compartment lids

6. Safety and Durability

• UV-stable, cold-resistant materials

• Structural integrity tested down to –39°C

• Impact-tested for gravel and forest trail collisions

• Corrosion-resistant stainless hardware

• Designed for long-term rental fleet durability (10+ year service life)

7. Sustainability

• Recycled ocean plastic components

• fully repairable modular design

• Replacement parts designed to extend product lifespan indefinitely

• Recyclable HDPE panels

• Designed for minimal energy consumption in production

• Supports carbon-neutral logistics options for large orders

8. User Experience

Set-Up Time

• Hard-shell: instantaneous

• Tent/canvas module: 60–90 seconds

Ergonomics

• Side-access and top-access options

• Low-friction interior floor reduces fatigue when loading/unloading

• Wide-range compatibility with standard outdoor gear

9. Applications

• Ski touring

• Bikepacking

• Eco-tourism rentals

• Emergency response

• Military recon camping

• Expedition support

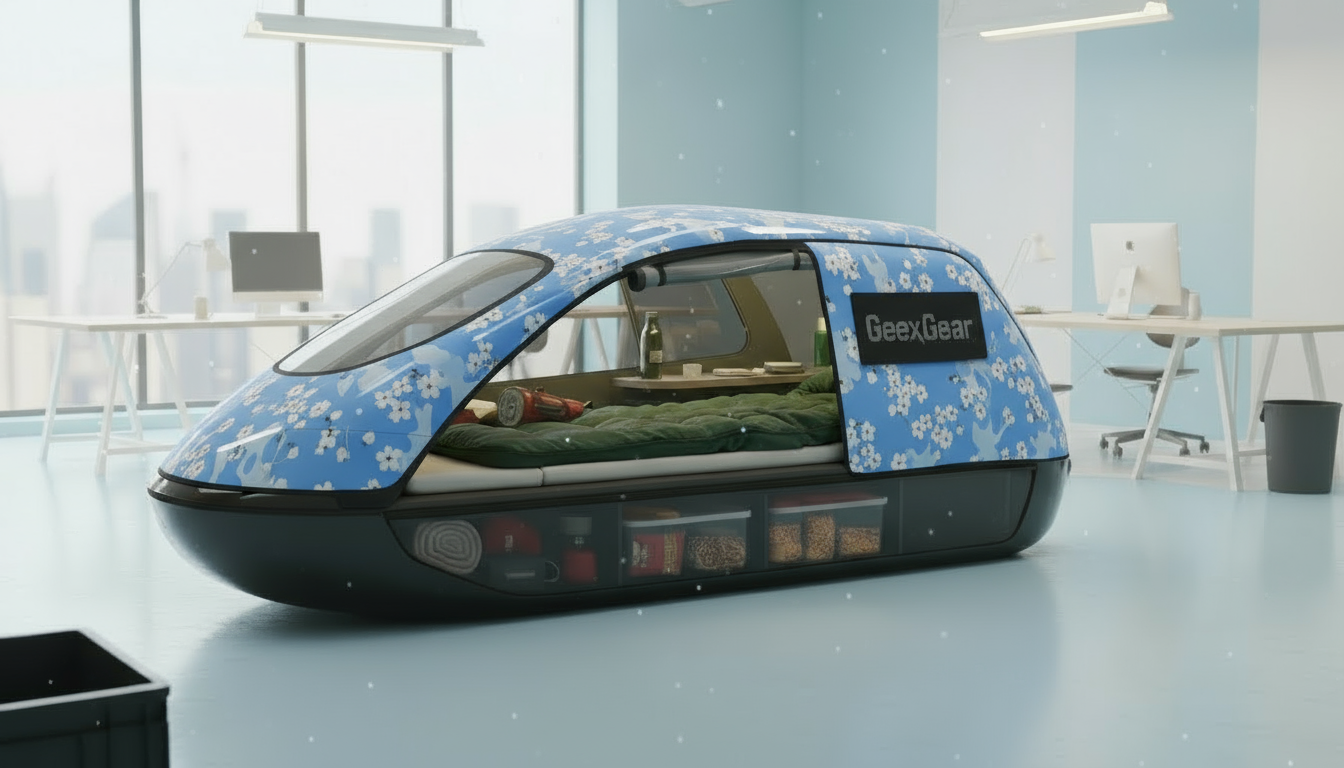

• Urban micro-camping

• Water-route touring

• Outdoor schools & youth programs

• Homeless veteran humanitarian shelter variant

10. Summary

The GeeX 365 POD is a lightweight, rugged, multi-terrain micro-shelter platform engineered for real-world use. Its universal fiberglass base, interchangeable modules, and season-agnostic design make it one of the most versatile personal mobility shelters ever developed. It merges Scandinavian outdoor tradition with modern engineering — all in a sustainable, repairable, future-proof package.
